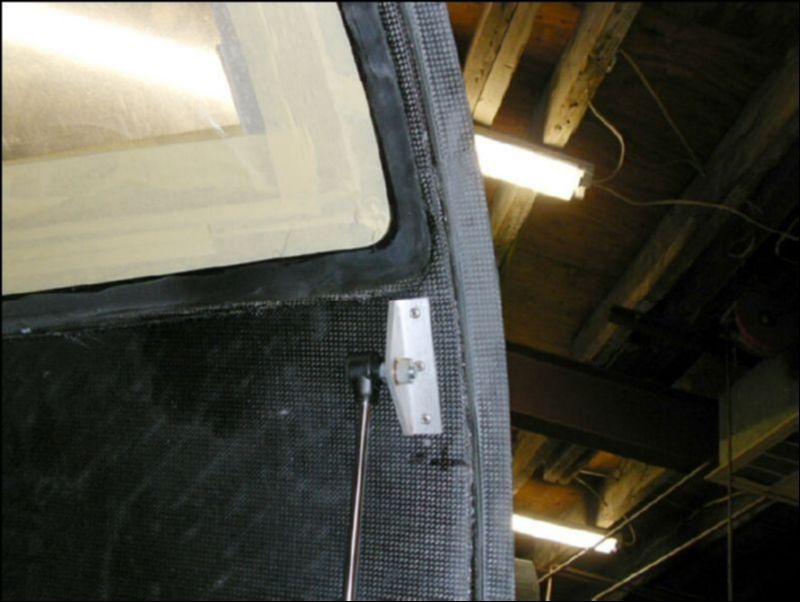

Install the door strut bracket to both doors. This can be fun to position correctly. You must make sure that when the door is close the strut is not fully compressed. I found that the drawings were off on the positioning of this part by about 30 mm. By this I mean that mine is 30 mm closer to the window from the bottom of the door. I measured from the very bottom of the door, perhaps the drawings where going from the lip on the door, this would make them just about right.
Install the door strut bracket to both doors. This can be fun to position correctly. You must make sure that when the door is close the strut is not fully compressed. I found that the drawings were off on the positioning of this part by about 30 mm. By this I mean that mine is 30 mm closer to the window from the bottom of the door. I measured from the very bottom of the door, perhaps the drawings where going from the lip on the door, this would make them just about right.
