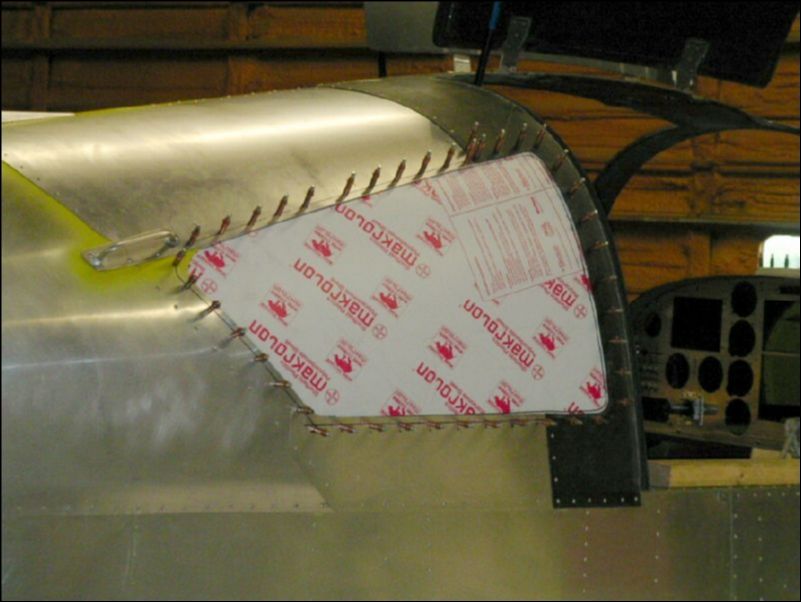

Have a helper hold the window from inside the cabin. Drill and cleco the window in place. A4 P50. Then remove the window and enlarge the holes in the window only to A5 and deburr both sides of the holes in the window. DO NOT enlarge the holes in the skin to A5.
Have a helper hold the window from inside the cabin. Drill and cleco the window in place. A4 P50. Then remove the window and enlarge the holes in the window only to A5 and deburr both sides of the holes in the window. DO NOT enlarge the holes in the skin to A5.
