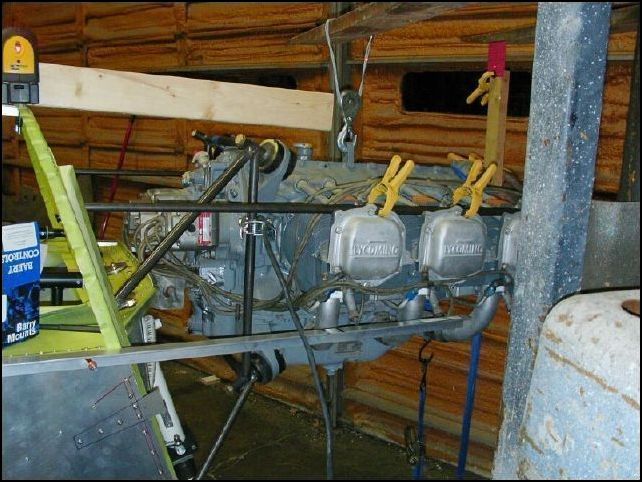

OK, now that I am happy with the position of the engine it is time to get it welded in place. First I measured the distance from the lower engine mount to the lower right corner of the dynafocal ring. Then I calculated the angles needed for both ends of the rod and cut the rod to fit. I had very little grinding to do to make this fit perfectly. Then I welded this rod in place. Next, I checked the position of the engine again to make sure that everything was still exactly where they should be. Then repeat for the upper right engine mount rod.
OK, now that I am happy with the position of the engine it is time to get it welded in place. First I measured the distance from the lower engine mount to the lower right corner of the dynafocal ring. Then I calculated the angles needed for both ends of the rod and cut the rod to fit. I had very little grinding to do to make this fit perfectly. Then I welded this rod in place. Next, I checked the position of the engine again to make sure that everything was still exactly where they should be. Then repeat for the upper right engine mount rod.
