CH-640 Fuselage rear fuselage floor sub-assembly (17 of 47)
![[First]](../images/bl_first.gif)
|
![[Prev]](../images/bl_prev.gif)
|
![[Home]](../images/bl_home.gif)
|
![[Index]](../images/bl_index.gif)
|
![[Next]](../images/bl_next.gif)
|
![[Last]](../images/bl_last.gif)
|
|

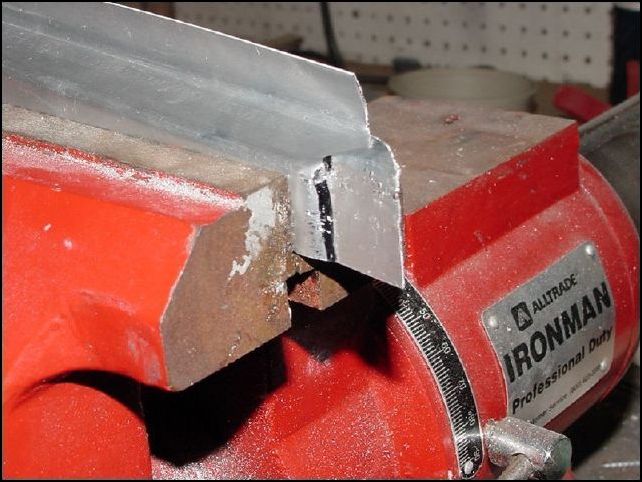

| Cut the Z angles as per 640-F-1 drawing. Once cut joggle the ends for proper overlap over the longerons. This picture shows how I joggled the Z angles. Be careful not to split the metal when you make these bends. Go slow and easy and the ends will bend just fine. |
|
|
|
|
|
|
|
