CH-640 Fuselage rear fuselage floor sub-assembly (19 of 47)
![[First]](../images/bl_first.gif)
|
![[Prev]](../images/bl_prev.gif)
|
![[Home]](../images/bl_home.gif)
|
![[Index]](../images/bl_index.gif)
|
![[Next]](../images/bl_next.gif)
|
![[Last]](../images/bl_last.gif)
|
|

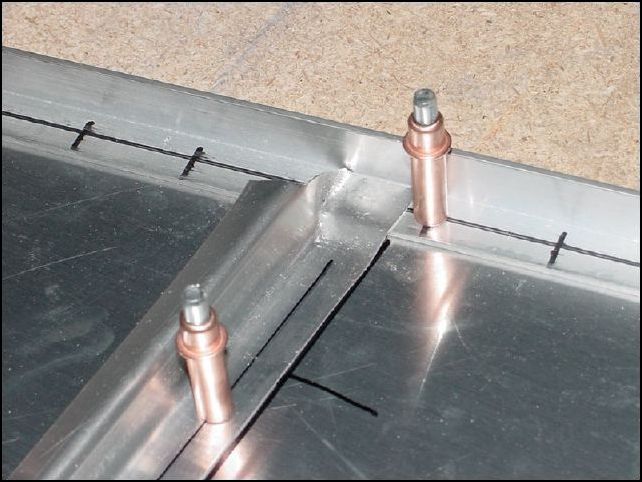

| Position the Z angles on the bottom skin, drill and cleco to table. All Z angles are P40 to P48. The Z angles around the access door that are in the tip to tail position are not joggled. |
|
|
|
|
|
|
|
