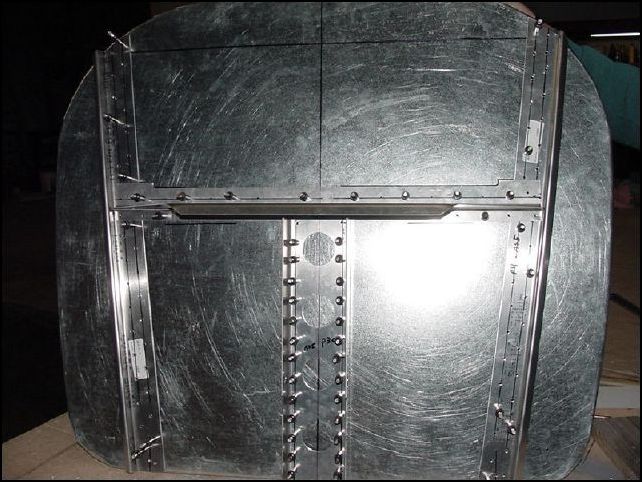

| Draw center line on flange of 20-F-16-1 (upper horizontal Z). Mark rivet locations AS 5 P40. Place upper horizontal z on firewall against standard L. Drill and cleco in place. NOTE: do not drill in motor mount hole area. |
|
|
|
|
|
|
|
