CH-640 Fuselage Cabin floor sub-assembly (11 of 18)


[First] [Prev] [Home] [Index] [Next] [Last]

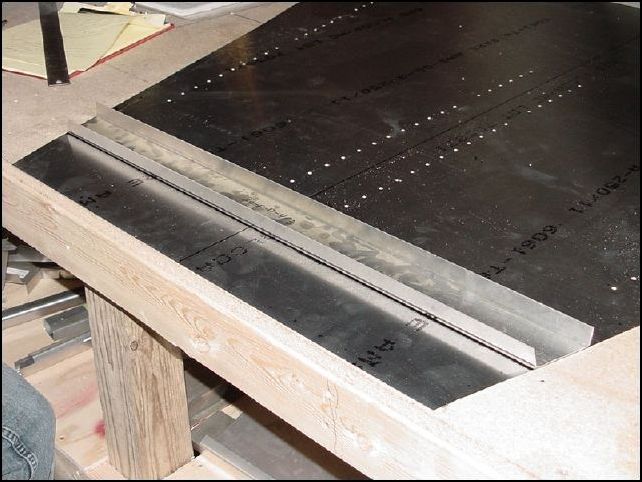

Measure from front of floor skin up 160mm. This is the location of the BACK of the forward floor channel (20-F-17-4). Position the floor channel to the skin and draw lines on the skin to mark it's position.
Measure from front of floor skin up 160mm. This is the location of the BACK of the forward floor channel (20-F-17-4). Position the floor channel to the skin and draw lines on the skin to mark it's position.
