CH-640 Fuselage rear fuselage floor sub-assembly (9 of 47)


[First] [Prev] [Home] [Index] [Next] [Last]

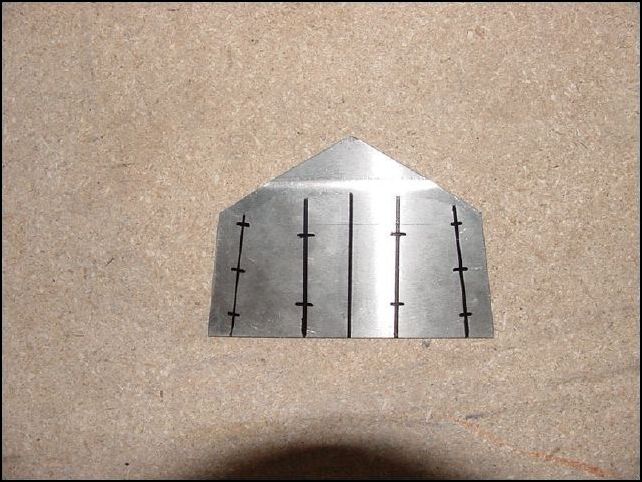

Mark and drill 10 holes for the AD-5 Rivets. Notice the left and right lines are at an angle. These lines are 11 mm from the sides The next lines in on each side are parallel to the center line. The picture makes it look like they are not but they are in fact parallel. Each line is 20 mm out from the center line.
Mark and drill 10 holes for the AD-5 Rivets. Notice the left and right lines are at an angle. These lines are 11 mm from the sides The next lines in on each side are parallel to the center line. The picture makes it look like they are not but they are in fact parallel. Each line is 20 mm out from the center line.
