CH-640 Fuselage rear fuselage floor sub-assembly (10 of 47)


[First] [Prev] [Home] [Index] [Next] [Last]

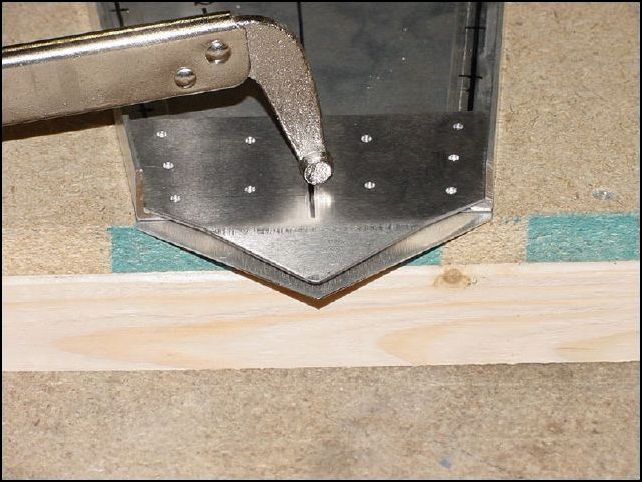

Place lower bottom rudder hinge, shim, lower top rudder hinge, and lower rear longerons in to position on the top of the bottom skin and clamp in place.
Place lower bottom rudder hinge, shim, lower top rudder hinge, and lower rear longerons in to position on the top of the bottom skin and clamp in place.
