CH-640 Fuselage rear fuselage floor sub-assembly (31 of 47)


[First] [Prev] [Home] [Index] [Next] [Last]

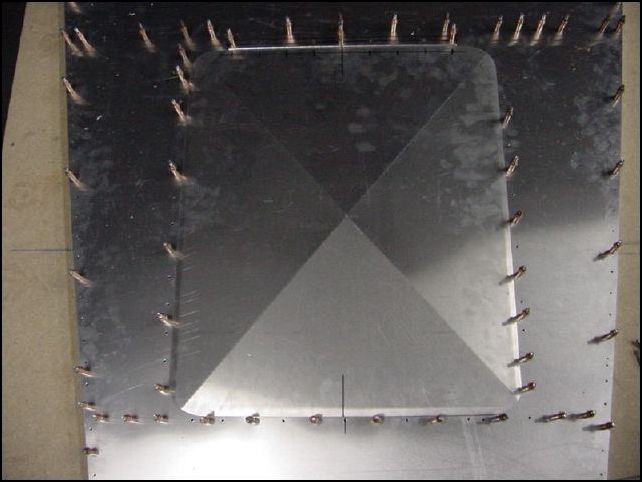

This image shows the access door lined up on the bottom skin. Notice that the access door is NOT wide enough to be able to install screws through it and into rivnuts that would have been installed in the Z angles. So again, I guess the rivnuts will have to be installed in the skin instead. By the way, aircraft spruce sells a nice little rivnut tool that you just screw into the rivnut and then pull it with your rivet gun just like any other rivet. WORKS GREAT! Purchase a couple of them though, I broke one by pulling too hard <grin>
This image shows the access door lined up on the bottom skin. Notice that the access door is NOT wide enough to be able to install screws through it and into rivnuts that would have been installed in the Z angles. So again, I guess the rivnuts will have to be installed in the skin instead. By the way, aircraft spruce sells a nice little rivnut tool that you just screw into the rivnut and then pull it with your rivet gun just like any other rivet. WORKS GREAT! Purchase a couple of them though, I broke one by pulling too hard
