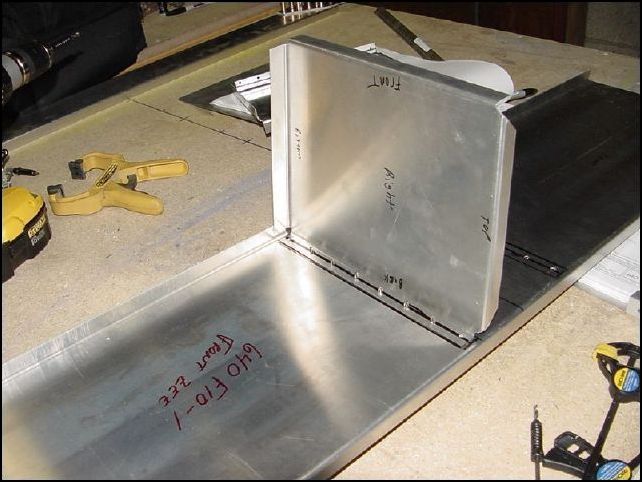

This image shows one side wall clecoed to the forward Z. Notice that I have marked top, bottom, front, and back. The top is 90 degrees to the back and the bottom angles up toward the front. On the IPL they have these marked as left and right, but the one marked left is actually what I would call the right one and the one marked right is actually left. This threw me for a bit since I would call left the left side of the aircraft but it seems these parts are marked left as if you were looking at the aircraft from nose to tail. Strange huh.
