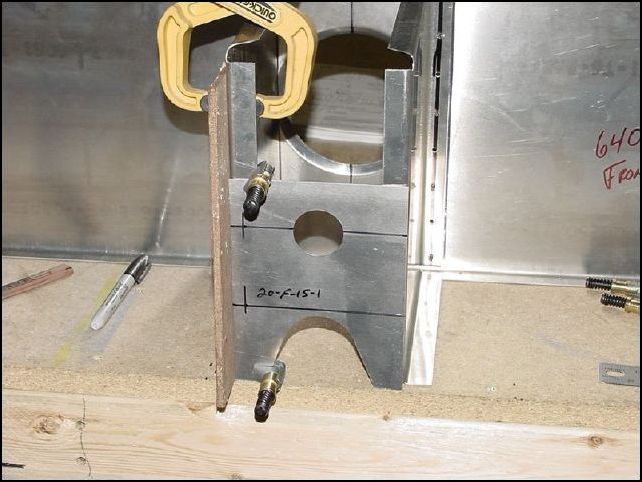

Position 20-F-15-1 to the front of the side walls and flush to the bottom of the side walls. Drill one hole at the 35 mm mark and one at the 95 mm mark for each side. I could not find any info as to what size rivet holes to drill so I drilled mine for A5 rivets.
