CH-640 Fuselage Front Z and torque tube tunnel (9 of 70)


[First] [Prev] [Home] [Index] [Next] [Last]

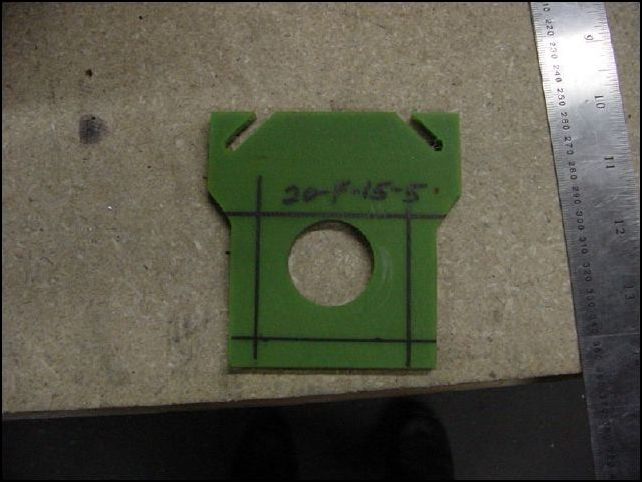

Mark 20-F-15-5 (torque tube bearing plate) 10 mm up, 10 mm in from left and right sides, and 66 mm up from bottom. I messed this part up since when the drawings show 10 mm up and 56 mm up to the next hole. The drawings are correct, but for some reason I marked mine 56 mm up from the bottom instead of from the 10 mm up mark. For now just know that I marked and drilled the top holes 10 mm lower than they should have been. OOOPS. I have posted new pictures of this part, see pictures 57 - 59.
Mark 20-F-15-5 (torque tube bearing plate) 10 mm up, 10 mm in from left and right sides, and 66 mm up from bottom. I messed this part up since when the drawings show 10 mm up and 56 mm up to the next hole. The drawings are correct, but for some reason I marked mine 56 mm up from the bottom instead of from the 10 mm up mark. For now just know that I marked and drilled the top holes 10 mm lower than they should have been. OOOPS. I have posted new pictures of this part, see pictures 57 - 59.
