CH-640 Fuselage Front Z and torque tube tunnel (29 of 70)
![[First]](../images/bl_first.gif)
|
![[Prev]](../images/bl_prev.gif)
|
![[Home]](../images/bl_home.gif)
|
![[Index]](../images/bl_index.gif)
|
![[Next]](../images/bl_next.gif)
|
![[Last]](../images/bl_last.gif)
|
|

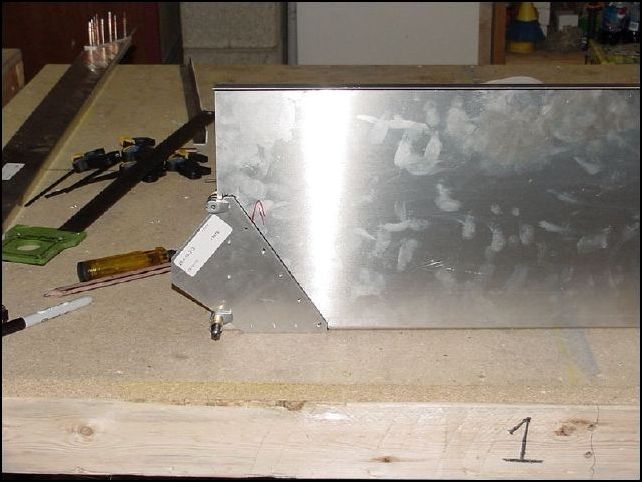

| Drill holes in 20-F-10-2 (front wing attach brackets) as per drawing 640-F-10 These holes are AD4. Do not drill the spar bolt holes to 5/16 at this time. Position the brackets to the front Z flush to the bottom and 1210mm from tip to tip. |
|
|
|
|
|
|
|
