CH-640 Fuselage Hull - Stage One (6 of 206)


[First] [Prev] [Home] [Index] [Next] [Last]

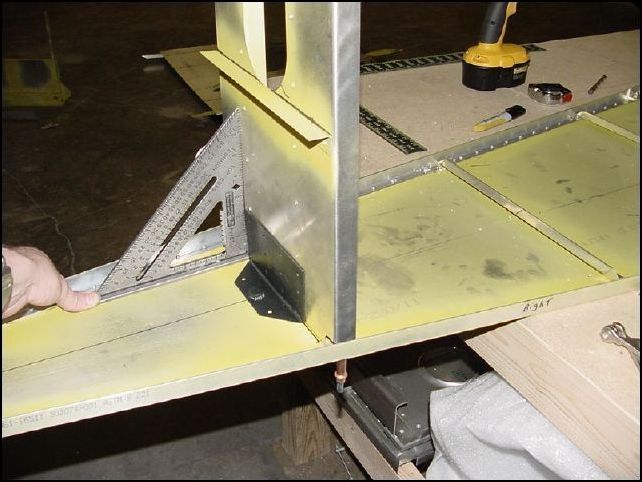

Square up the HT-frame and drill through the stiffener into the HT frame. NOTE: The HT fram is not actually square, the drawings show it as 88 degrees not 90, but I still used my square and found that it is very easy to lean it back the 2 degrees after drilling my rivet holes.
Square up the HT-frame and drill through the stiffener into the HT frame. NOTE: The HT fram is not actually square, the drawings show it as 88 degrees not 90, but I still used my square and found that it is very easy to lean it back the 2 degrees after drilling my rivet holes.
