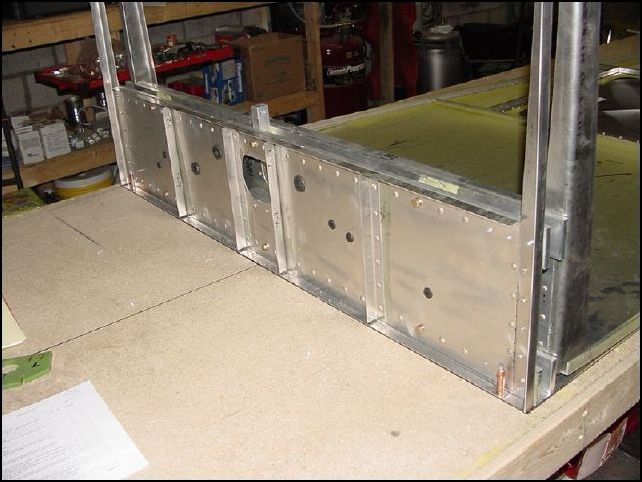

Position the front of the center spar to the front of the rear skin. Drill one hole at each end into the table and cleco in place. NOTE: I also clecoed the rear floor to my table so that it will not move. To do this I used the small holes that were already in the skin at each side and drilled holes in my table with a #40 drill bit. Then clecoed with A3 clecos (silver ones).
Position the front of the center spar to the front of the rear skin. Drill one hole at each end into the table and cleco in place. NOTE: I also clecoed the rear floor to my table so that it will not move. To do this I used the small holes that were already in the skin at each side and drilled holes in my table with a #40 drill bit. Then clecoed with A3 clecos (silver ones).
