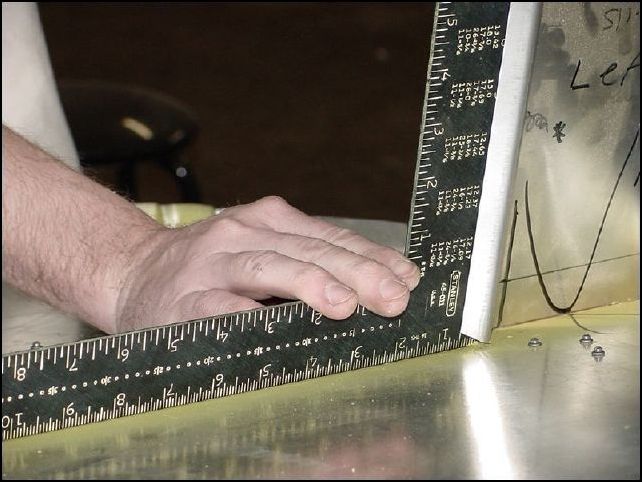

| Install the two horizontal panels (640-F-14-1) to the firewall. NOTE: the panels are 90 deg. to the firewall. I could not find anything in the drawings that said what rivet pitch to use. However the image from Zenair did show 6 rivets so I drilled A5 P20 which worked out nicely. |
|
|
|
|
|
|
|
