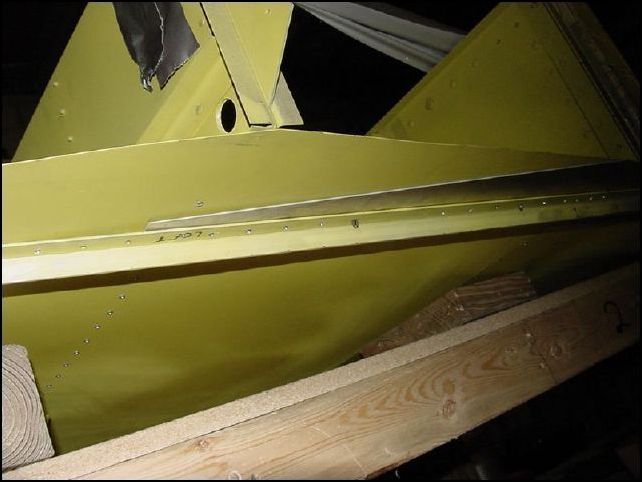

Position 20-F-24-5 (lower longeron doubler) between the bottom skin of the fuselage and the longeron. The front of this doubler is about three rivet holes in front of the rear of the front channel. The rear of this doubler is just a few mm behind the rear channel, and the side of this part is even with the side of the fuselage. You will need to trim this part to fit flush starting about 350 mm from the tail end of it.
Position 20-F-24-5 (lower longeron doubler) between the bottom skin of the fuselage and the longeron. The front of this doubler is about three rivet holes in front of the rear of the front channel. The rear of this doubler is just a few mm behind the rear channel, and the side of this part is even with the side of the fuselage. You will need to trim this part to fit flush starting about 350 mm from the tail end of it.
