CH-640 Fuselage Hull - Stage One (58 of 206)


[First] [Prev] [Home] [Index] [Next] [Last]

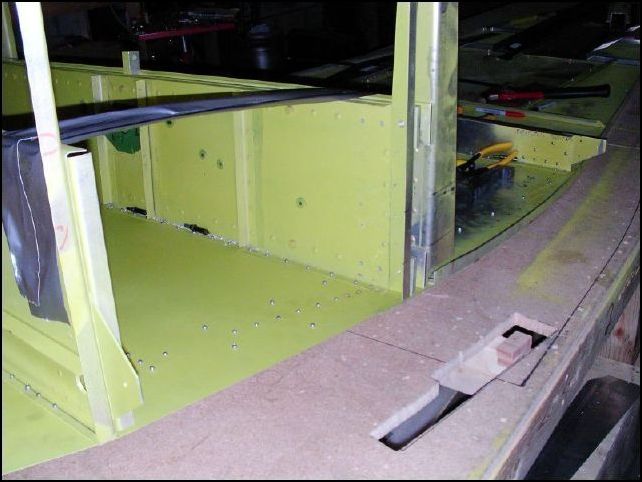

Rivet the doubler and longerons in place. Notice that the first three rivets in front of the center channel are solid rivets and you also have a row of solid rivets behind the center channel back to the location of the rear seat channel. The channel is not installed yet. DO NOT INSTALL THE SOLID RIVETS behind the center spar yet. I had to drill mine out to install the main gear brackets. Don't make the same mistake that I made!
Rivet the doubler and longerons in place. Notice that the first three rivets in front of the center channel are solid rivets and you also have a row of solid rivets behind the center channel back to the location of the rear seat channel. The channel is not installed yet. DO NOT INSTALL THE SOLID RIVETS behind the center spar yet. I had to drill mine out to install the main gear brackets. Don't make the same mistake that I made!
