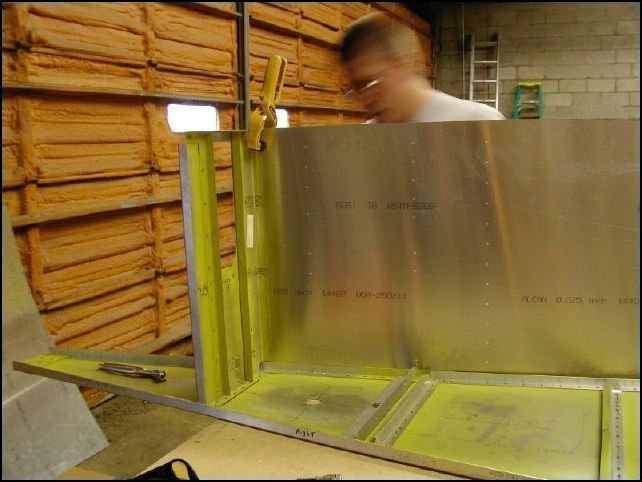

Position the side skin so that the rear of the skin is flush with the rear of the HT assembly, the front will line up with the FRONT of the rear upright on the center channel, and the bottom of the skin lines up with the bottom skin. Clamp the skin in place for now.
Position the side skin so that the rear of the skin is flush with the rear of the HT assembly, the front will line up with the FRONT of the rear upright on the center channel, and the bottom of the skin lines up with the bottom skin. Clamp the skin in place for now.
