CH-640 Fuselage Hull - Stage One (114 of 206)


[First] [Prev] [Home] [Index] [Next] [Last]

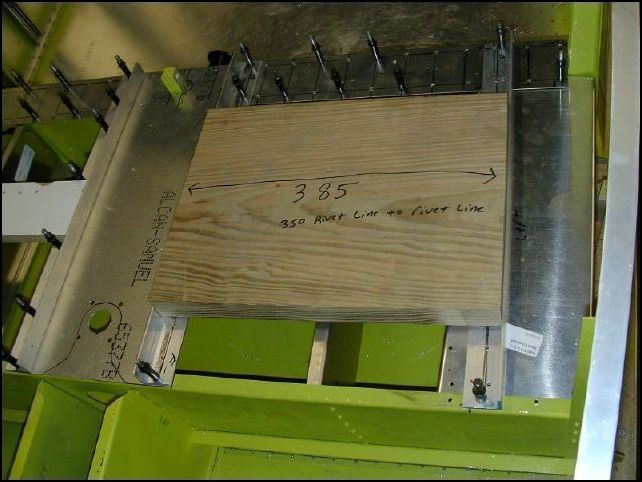

Position the seat panel, seat side channels, and seat rails to the fuselage. The inside seat rails line up with the edge of the center seat panel. The outside seat rails are 350 mm from the inside of the L that sticks up to the inside of the L on the inside. Also the Longer edge of the rails lay flat and the short edge sticks up.
Position the seat panel, seat side channels, and seat rails to the fuselage. The inside seat rails line up with the edge of the center seat panel. The outside seat rails are 350 mm from the inside of the L that sticks up to the inside of the L on the inside. Also the Longer edge of the rails lay flat and the short edge sticks up.
