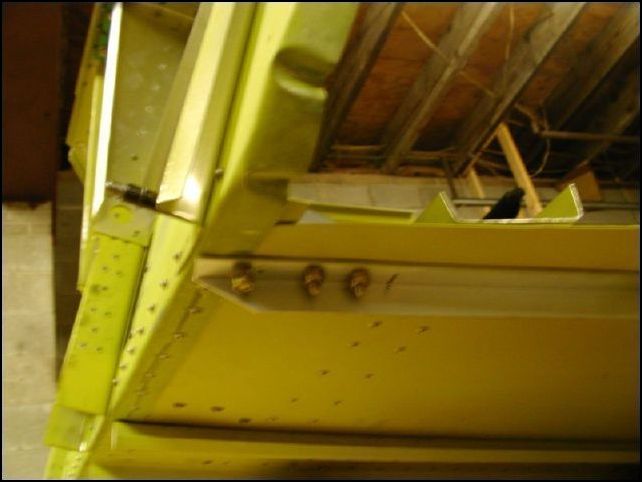

Line up the lower engine mount to the firewall and cabin floor. Be sure to install the shim under the rear of the lower engine mount bracket. Clamp in place and drill holes for three bolts. Be sure that these holes are in the center of the longerons.
Line up the lower engine mount to the firewall and cabin floor. Be sure to install the shim under the rear of the lower engine mount bracket. Clamp in place and drill holes for three bolts. Be sure that these holes are in the center of the longerons.
