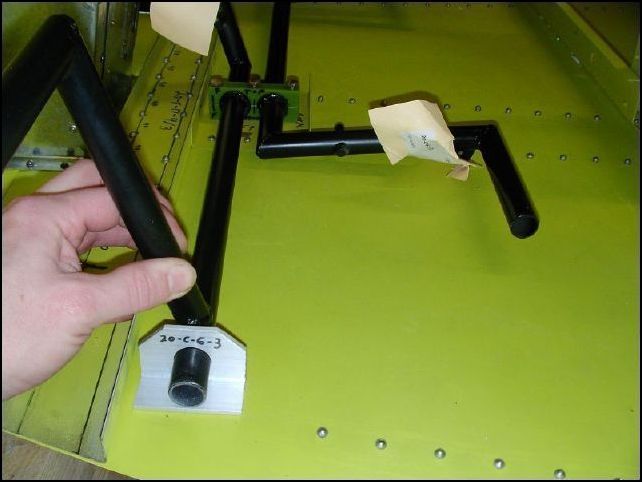

Slide 20-C-6-3 (outboard pedal bearing) on to the rudder pedals. Drill into place on floor. NOTE: the holes must be centered to the bottom longerons and the bearing must be in parallel to each other so that the pedals will fit the bearings.
Slide 20-C-6-3 (outboard pedal bearing) on to the rudder pedals. Drill into place on floor. NOTE: the holes must be centered to the bottom longerons and the bearing must be in parallel to each other so that the pedals will fit the bearings.
