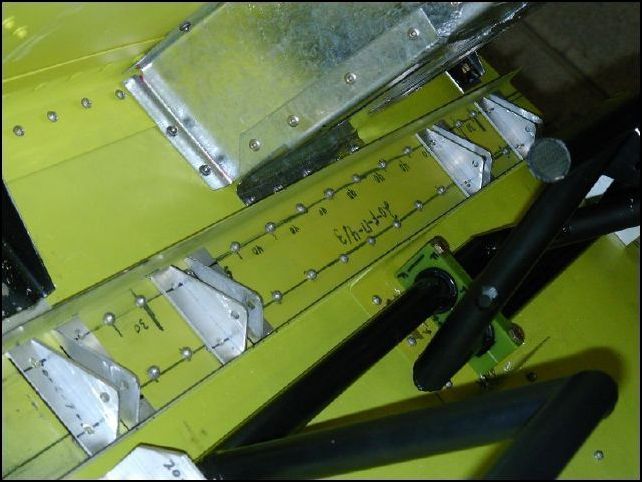

Position 20-C-7-2 (brake cylinder supports) as per drawing. Drill and bolt / rivet in place. The outside supports get bolted through the longerons and the rest of the supports are riveted with A5 rivets.
Position 20-C-7-2 (brake cylinder supports) as per drawing. Drill and bolt / rivet in place. The outside supports get bolted through the longerons and the rest of the supports are riveted with A5 rivets.
