CH-640 Fuselage Hull - Stage One (163 of 206)


[First] [Prev] [Home] [Index] [Next] [Last]

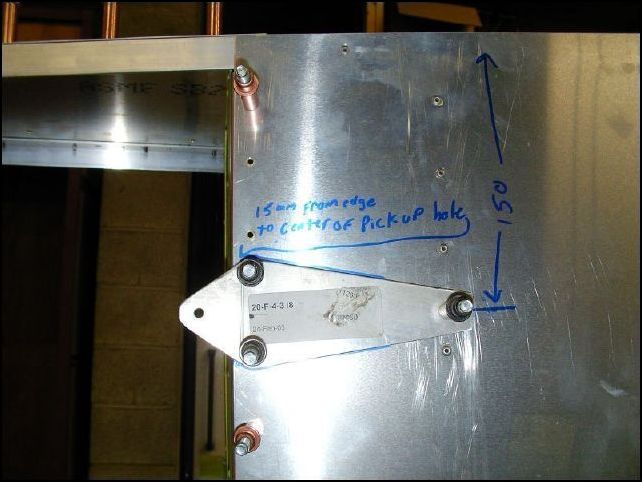

Position, drill, and cleco the left and right horizontal tail attachments. Cleco from the inside of the fuselage. This part is 150 mm from the top of the longeron to it's center line and is also 15 mm from the rear of the HT panel to the center of the rear bolt hole.
Position, drill, and cleco the left and right horizontal tail attachments. Cleco from the inside of the fuselage. This part is 150 mm from the top of the longeron to it's center line and is also 15 mm from the rear of the HT panel to the center of the rear bolt hole.
