CH-640 Fuselage Front Z and torque tube tunnel (48 of 70)
![[First]](../images/bl_first.gif)
|
![[Prev]](../images/bl_prev.gif)
|
![[Home]](../images/bl_home.gif)
|
![[Index]](../images/bl_index.gif)
|
![[Next]](../images/bl_next.gif)
|
![[Last]](../images/bl_last.gif)
|
|

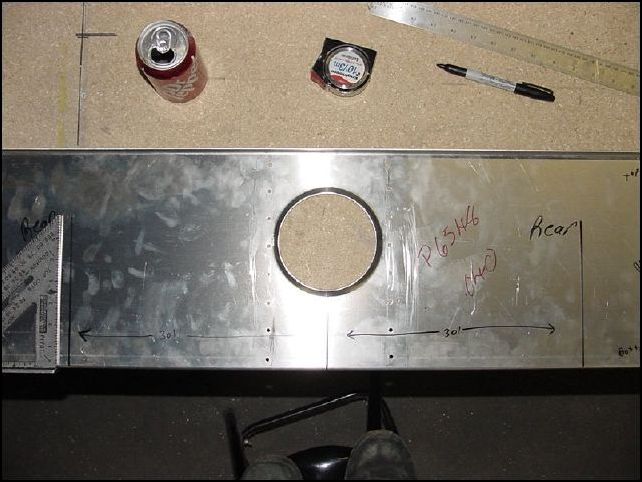

| Take assembly apart. Mark center line on back of front Z. Measure 301mm left and right from center line and mark. This is the location of the rivets for the standard L. I then also measured 110mm left and right of center line, this is the edge of the standard L. |
|
|
|
|
|
|
|
