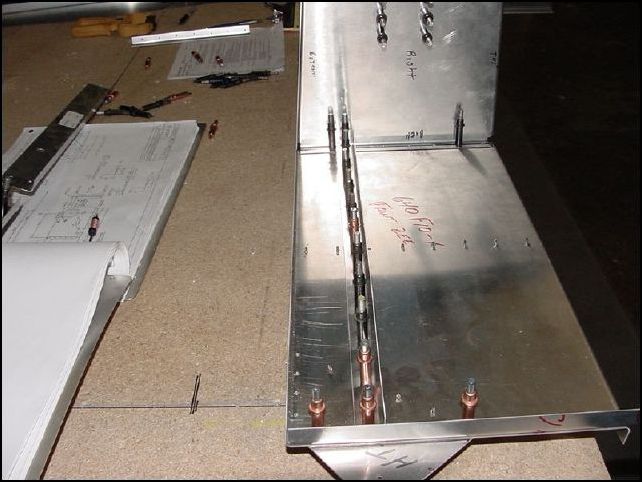

Drill and cleco in place A5 P45. I drilled the two outside holes from the rear through the wing attachment and dirlled them as A4 since the drawings show the wing attachment as AD4 not A5. I also drilled the center hole as A4 since the rest of the rivets in the standard L are A4 and this one goes through that L.
Drill and cleco in place A5 P45. I drilled the two outside holes from the rear through the wing attachment and dirlled them as A4 since the drawings show the wing attachment as AD4 not A5. I also drilled the center hole as A4 since the rest of the rivets in the standard L are A4 and this one goes through that L.
