CH-640 Fuselage Hull - Stage One (137 of 206)
![[First]](../images/bl_first.gif)
|
![[Prev]](../images/bl_prev.gif)
|
![[Home]](../images/bl_home.gif)
|
![[Index]](../images/bl_index.gif)
|
![[Next]](../images/bl_next.gif)
|
![[Last]](../images/bl_last.gif)
|
|

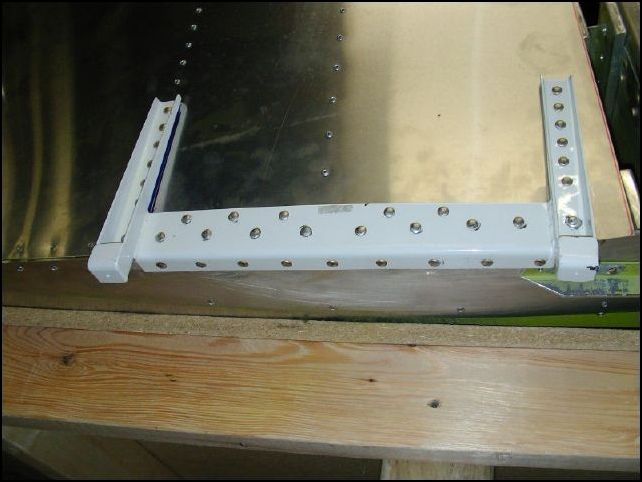

| Install left and right main gear supports. MAKE SURE the main gear support is clamped tightly in all directions when drilling. Aslo be sure to put the spacer under the front. This was not as hard as I expected it to be. If you drill and clamp as you go from the back toward the front then the support will bend around the fuselage for a nice tight fit. All rivets are AD5 but range in how long they are. |
|
|
|
|
|
|
|
