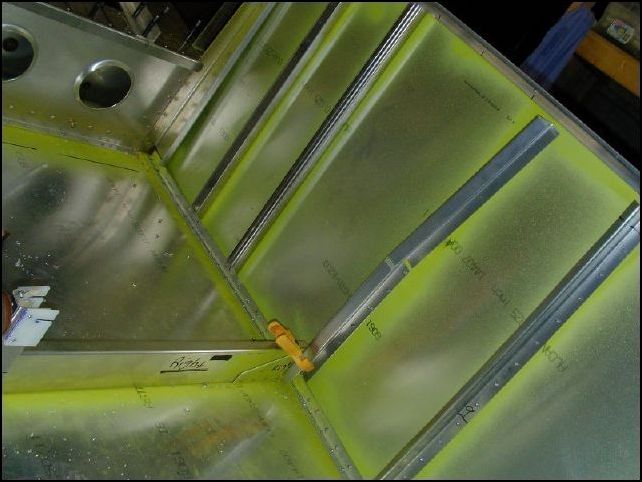

Install the gear uprights and rear horizontal attachment channel. (20-F-25-1, 20-F-25-2, and 640-F-13-3). The I.P.L. says to drill and cleco only. I could not see any reason for this so I have already riveted mine in place. NOTE: 640-F-13-3 must be bent to fit the rear seat back. To do this measure up 260mm and drill a 1/4
Install the gear uprights and rear horizontal attachment channel. (20-F-25-1, 20-F-25-2, and 640-F-13-3). The I.P.L. says to drill and cleco only. I could not see any reason for this so I have already riveted mine in place. NOTE: 640-F-13-3 must be bent to fit the rear seat back. To do this measure up 260mm and drill a 1/4" hole in the flanges, then snip the flanges so that you can bend the channel. Then just rivet from this bend down so that you can bend this part when installing the seat back. My side skin was pre-drilled incorrectly so I will have to pop a few rivets in the pre-drilled holes after installing the rear seat back.
