CH-640 Fuselage Hull - Stage One (180 of 206)


[First] [Prev] [Home] [Index] [Next] [Last]

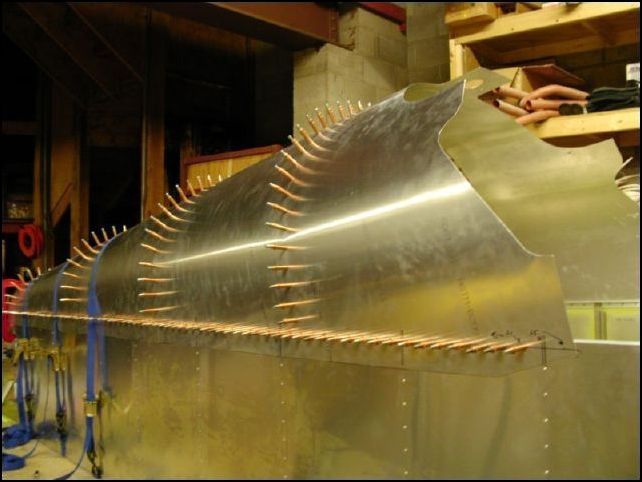

Measure down the top longerons 10 mm and 20 mm. Mark a line along the top rear skins at both locations. The mark at 10 mm is the rivet line and the mark at 20 mm is the trim line. Yes, you have to trim the side skins so that they will fit the fuselage correctly. Drill and cleco the rear top skins at the 10 mm line.
Measure down the top longerons 10 mm and 20 mm. Mark a line along the top rear skins at both locations. The mark at 10 mm is the rivet line and the mark at 20 mm is the trim line. Yes, you have to trim the side skins so that they will fit the fuselage correctly. Drill and cleco the rear top skins at the 10 mm line.
